25 Trays Dryer Machine
Product Range
25 Trays Dryer Machine
Features
- High-efficiency industrial drying
- Durable and corrosion-resistant design
- Energy-efficient operation
- Quick and uniform drying
- Insulated drying chamber
- Continuous operation with minimal supervision
Applications
- Drying tropical and seasonal fruits
- Leafy and root vegetables
- Culinary herbs and spices
- Nuts and dry seeds
- Herbal medicines and botanicals
- Agro-based processing industries
Contact
Call Us
Mail Us
Address
469, Devdi, Post-Gamdi, Daskroi, Ahmedabad, Gujarat, 382435
Specification
| Specification | Details |
| Model | 25 TRAYS |
| capacity | 100 kg/hr to 125 kg/hr (batch capacity) |
| Material | Stainless Steel (SS304 / SS316) or Mild Steel (MS) |
| Tray Size | 16" × 32" × 1.25" |
| Gasket | High-temperature resistant Food-grade Silicone gasket |
| Motor Power | Axial flow blower (0.5 HP to 1 HP motor) |
| Temperature | Ambient to 100°C or 150°C |
| Heating Medium | Electrical (approx. 6 kW to 9 kW) or Steam |
| Voltage / Frequency | 220–440V, Single Phase or Three Phase |
| Control Panel | Digital Temperature Controller with Timer |
| Drying Mechanism | Recirculating hot air draft system |
| Applications | Food, Pharma, Chemicals, Spices, Herbs, Vegetable drying |
| Safety Features | Explosion-proof doors, Digital display, Over-heat protection |
| Finish | High-quality buffing (SS) or industrial grade paint (MS) |
| Optional Accessories | Extra Trays, Stainless Steel Trolley, Flameproof motor |
Inquire Here
Our Products

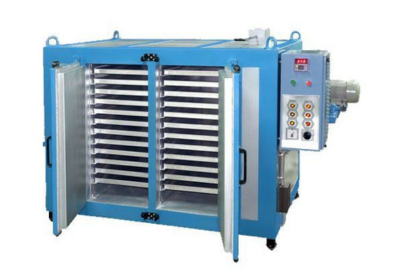

25 Tray Stainless Steel Tray Dryer Machine for Uniform & Hygienic Drying
Designed for high-volume industrial use, the 25 Tray Dryer Machine efficiently dries a wide range of food products, including fruits, vegetables, herbs, spices, and nuts. Its uniform hot air circulation across all 25 trays guarantees consistent drying results for commercial and agro-based industries.
Engineered for continuous operation, this 25 Tray Dryer Machine combines efficiency, precision, and reliability for large-scale food processing. The machine’s advanced forced hot air system, equipped with adjustable blower speed, provides even heat distribution while retaining the natural color, texture, and nutrients of food products. Safety features such as overheat protection, emergency stop, and motor overload protection make it secure for industrial use. Suitable for commercial kitchens, agro-based units, and large food processing plants, this tray dryer offers high output, minimal maintenance, and consistent quality.
